The post of this blog is to show the advantages of using multi-stage build on Docker for image size optimization. In case you've gotten here and never heard of the word "multi-stage", don't worry. Basically it is to build your image in different stages, and copy the artifacts from one stage to another, this allows you to keep the readability and maintenance of your Dockerfile, as well as reduce the size of the resulting image.
For practice, let's use this Spring Boot learning project here, in which we use Maven to compile our project. Then let's not wait any longer, and let's get to work.
Variant 1
This was the first variant that crossed my mind, basically it was, let me use a JDK base image to be able to compile the project, in this case openjdk:8, install Maven, compile the source code, and declare the entrypoint to the artifact binary .jar file.
FROM openjdk:8
RUN apt-get update && apt-get install -y maven
COPY . /usr/app
WORKDIR /usr/app
RUN mvn clean package
EXPOSE 8080
ENTRYPOINT ["java","-jar","/usr/app/target/learning-spring-boot-0.0.1.jar"] Lets execute the build command:
$ docker build -t josephrodriguez:variant1 -f ./Dockerfile .
[+] Building 410.9s (10/10) FINISHED
=> [internal] load build definition from Dockerfile
=> => transferring dockerfile: 32B
=> [internal] load .dockerignore
=> => transferring context: 35B
=> [internal] load metadata for docker.io/library/openjdk:8
=> [internal] load build context
=> => transferring context: 9.89kB
=> [1/5] FROM docker.io/library/openjdk:8
=> CACHED [2/5] RUN apt-get update && apt-get install -y maven
=> CACHED [3/5] COPY . /usr/app
=> CACHED [4/5] WORKDIR /usr/app
=> [5/5] RUN mvn clean package
=> exporting to image
=> => exporting layers
=> => writing image sha256:ccce626033f48beb36087794b0664a97dc0e45ea95194310709c253b855449f0
=> => naming to docker.io/library/josephrodriguez:variant1
The image was created successfully, but there was some curiosity in me to inspect and see the properties.
$ docker inspect josephrodriguez:variant1
{ ... "Size": 1002195280, "VirtualSize": 1002195280, ... "RootFS": { "Type": "layers", "Layers": [ "sha256:799760671c382bd2492346f4c36ee4033cf917400be4354c8b096ecef88df34b", "sha256:4e61e63529c26e95bef3cf769d07847dee7590b37b6b685186ce5c37a509b06d", "sha256:d00da3cd77634730ab5bc8e98b784cda40259f8be6a9b7138b4eee24ca1226b3", "sha256:8555e663f65b2a41e3aa61c0440f73bc5fac86c94d1cc14331d86d1c699382bf", "sha256:00ef5416d927e1fe6332a3c71e73d9b99eb25f0606bc8ecb0cbec4322d113a6d", "sha256:9cb5eb95298cec190a4f823f82c5a12bbec227e25c9ea4f3a91c05a0c06988a3", "sha256:d9b6ea8e7d5f87f028ab876890fc4129544152138293a167c7697386d57b8a79", "sha256:a5e66608e40747d1a4aba9b933c609b3091fc4eb9796b55c9a121476f4edd364", "sha256:ebd00c77f600344c1e8934b6e69f6dbdf4ae8b2cec1b875a422595a074bce142", "sha256:5f70bf18a086007016e948b04aed3b82103a36bea41755b6cddfaf10ace3c6ef", "sha256:cc22a4d2c89f478db3c784b65b1dd650a709a04456f971cecf41d20dac5f197e" ] } ... }
This information raised two major concerns:
- The image size is really big
- It´s contains too many layers
We all know that in itself each of the previous points goes against the performance of our image when deploy it on container.
Variant 2
In that direction we are going to move to try to solve these problems. So, we are going to propose solutions, what if:
- We use a lighter image such as openjdk:8-jdk-alpine.
In that case we are unable to use apt command to install Maven and compile the project, but still we have a solution for this new problem. The Maven wrapper plugin on the repository can be used, we just need to set the executable permissions over it. In that direction our Dockerfile looks like follow:
FROM openjdk:8-jdk-alpine
COPY . /usr/app
WORKDIR /usr/app
RUN chmod +x mvnw && ./mvnw clean package
COPY /target/*.jar /app.jar
EXPOSE 8080
ENTRYPOINT ["java","-jar","app.jar"]
We are ready to rebuild our image with these new changes.
$ docker build -t josephrodriguez:variant2 -f ./Dockerfile .
[+] Building 482.1s (10/10) FINISHED
=> [internal] load build definition from Dockerfile
=> => transferring dockerfile: 262B
=> [internal] load .dockerignore
=> => transferring context: 35B
=> [internal] load metadata for docker.io/library/openjdk:8-jdk-alpine
=> [internal] load build context
=> => transferring context: 10.13kB
=> CACHED [basebuild 1/1] FROM docker.io/library/openjdk:8-jdk-alpine
=> [build 1/4] COPY . /usr/app
=> [build 2/4] WORKDIR /usr/app
=> [build 3/4] RUN chmod +x mvnw && ./mvnw clean package
=> [build 4/4] COPY /target/*.jar /app.jar
=> exporting to image
=> => exporting layers
=> => writing image sha256:67a39c7c6ace2c2dfdc81db9909f58c008fb56c19fe75eb09ecc5c19f896fc8a
=> => naming to docker.io/library/josephrodriguez:variant2
Controlling a little anxiety and excitement to inspect our image again, we repeat the same step:
$ docker inspect josephrodriguez:variant2 { "Size": 360337334, "VirtualSize": 360337334, ... "RootFS": { "Type": "layers", "Layers": [ "sha256:f1b5933fe4b5f49bbe8258745cf396afe07e625bdab3168e364daf7c956b6b81", "sha256:9b9b7f3d56a01e3d9076874990c62e7a516cc4032f784f421574d06b18ef9aa4", "sha256:ceaf9e1ebef5f9eaa707a838848a3c13800fcf32d7757be10d4b08fb85f1bc8a", "sha256:c16f37ef1693d02f9d1a938d965b131a3d9cd4f04de15a3b1cf000c251fb07bc", "sha256:5f70bf18a086007016e948b04aed3b82103a36bea41755b6cddfaf10ace3c6ef", "sha256:ec3ae917e70014706981d1b58a02390d3d23b1fe5e94a0df5ecf2c73f04a2452", "sha256:eea9c1935243ee73b7d6952bf110f2dfe93868897c3ca53452f4acfb907e2f8b" ] } ... }
Wow, much better. We have now a lighter image from approximately 1GB we have now 360 MB and with less layers. We are moving forward.
Now I have another curiosity with our progress, we are going to check the file system of our image.
$ docker run -ti --entrypoint "/bin/sh" josephrodriguez:variant2
/usr/app # ls
Dockerfile app.jar data mvnw pom.xml src target
In this new version of our image we see that we are publishing with it the source code inside the src folder, the Java byte code .class files and our app.jar file on target folder. What if we could have a lighter image with just our final artifact, the application .jar file?
Variant 3
In this direction we can think, what if we could divide the image process building into two phases? In a first stage we compile our source code and generate our app.jar file, and in a second stage we copy our app.jar file for the final image. We can use the openjdk:8-jdk-alpine image as a base for the first stage, and in the second stage we can use the openjdk:8-jre-alpine image as a base, which is even lighter because it only contains the tools to run our application and not it contains all the development tools.
Here I present multi-stage builds as our definitive solution, the Dockerfile would be as follows:
1: FROM openjdk:8-jdk-alpine as build
2: COPY . /usr/app
3: WORKDIR /usr/app
4: RUN chmod +x mvnw && ./mvnw clean package
5:
6: FROM openjdk:8-jre-alpine
7: COPY --from=build /usr/app/target/*.jar app.jar
8: EXPOSE 8080
9:
10: ENTRYPOINT ["java","-jar","app.jar"]
The code block from lines 1 to 4 is what we already know, now the magic comes in the following blocks.
On line 6 we are declaring that our base image is openjdk:8-jre-alpine instead of openjdk:8-jdk-alpine image.
6: FROM openjdk:8-jre-alpine
In the next line, we are going to copy our app.jar file from our previous stage named build to our final image with the absolute path of the file.
7: COPY --from=build /usr/app/target/*.jar app.jar
Lets build now our image.
$ docker build -t josephrodriguez:variant3 -f ./Dockerfile .
[+] Building 0.3s (12/12) FINISHED
=> [internal] load build definition from Dockerfile
=> => transferring dockerfile: 282B
=> [internal] load .dockerignore
=> => transferring context: 35B
=> [internal] load metadata for docker.io/library/openjdk:8-jdk-alpine
=> [internal] load metadata for docker.io/library/openjdk:8-jre-alpine
=> [internal] load build context
=> => transferring context: 10.15kB
=> [build 1/4] FROM docker.io/library/openjdk:8-jdk-alpine
=> [stage-1 1/2] FROM docker.io/library/openjdk:8-jre-alpine
=> CACHED [build 2/4] COPY . /usr/app
=> CACHED [build 3/4] WORKDIR /usr/app
=> CACHED [build 4/4] RUN chmod +x mvnw && ./mvnw clean package
=> CACHED [stage-1 2/2] COPY --from=build /usr/app/target/*.jar app.jar
=> exporting to image
=> => exporting layers
=> => writing image sha256:601acb6abe23e60ca1fa6f1b11f03168f6581cd25df3ce58f378eb5a843b06c5
=> => naming to docker.io/library/josephrodriguez:variant3
$ docker run -ti --entrypoint "/bin/sh" josephrodriguez:variant3
/ # ls
app.jar bin dev etc home lib media mnt opt
proc root run sbin srv sys tmp usr var
Just what we want, in our image we only have our artifact app.jar. Lets inspect the image.
$ docker inspect josephrodriguez:variant3
[
{
"Config": {
"Env": [
"PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/lib/jvm/java-1.8-openjdk/jre/bin:/usr/lib/jvm/java-1.8-openjdk/bin",
"LANG=C.UTF-8",
"JAVA_HOME=/usr/lib/jvm/java-1.8-openjdk/jre",
"JAVA_VERSION=8u212",
"JAVA_ALPINE_VERSION=8.212.04-r0"
]
},
"Architecture": "amd64",
"Os": "linux",
"Size": 133549472,
"VirtualSize": 133549472,
...
"RootFS": {
"Type": "layers",
"Layers": [
"sha256:f1b5933fe4b5f49bbe8258745cf396afe07e625bdab3168e364daf7c956b6b81",
"sha256:9b9b7f3d56a01e3d9076874990c62e7a516cc4032f784f421574d06b18ef9aa4",
"sha256:edd61588d12669e2d71a0de2aab96add3304bf565730e1e6144ec3c3fac339e4",
"sha256:0701526ec6789abb0b6b8454aaa6574edc5f8fd03bd27102ca51baf005e66425"
]
}
}
]
First thing, our image is using as JAVA_HOME
the JRE distribution. Second point, the size of our image decreased considerably and as a last advantage, we now have only 4 layers. I can't wish for anything better.
$ docker image ls | grep variant
josephrodriguez variant1 ccce626033f4 1GB
josephrodriguez variant2 67a39c7c6ace 360MB
josephrodriguez variant3 601acb6abe23 134MB

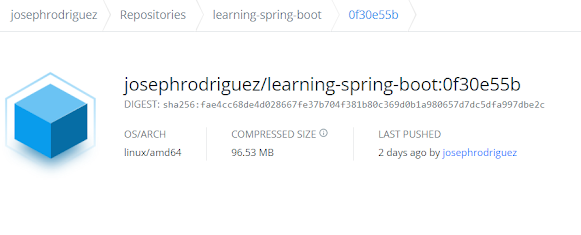

In the Docker Hub repository we can even see that our compressed image is even lighter!!!!!
